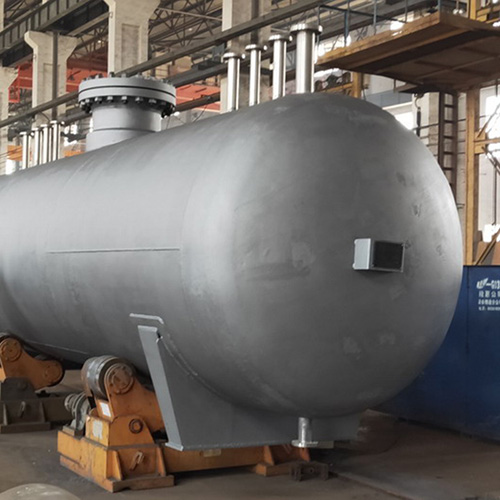

TITANIUM REACTOR, TITANIUM STORAGE TANK

[ Supply status ]
Forming and welding of cylinder, acid pickling and passivation treatment, polishing of weld joint, supporting titanium flange, titanium connecting pipe and titanium fastener, issuance of flaw detection report.

[ Processing Technology ]

Blanking of Titanium Plate → forming of coiled plate → high purity argon arc welding → NDT of welding seam → polishing → acid pickling and passivation → hydraulic pressure test → assembly of accessories.

[ Material Performance ]

TA2 pure titanium surface forms a dense passive film, which is free from corrosion and perforation in high corrosion media such as hydrochloric acid, sulfuric acid, electrolyte and seawater for a long time; Strong stability under high temperature condition, not easy to react with materials and pollute products; Light weight, obvious corrosion resistance compared with stainless steel; Non-magnetic, suitable for high-purity reagent and electronic chemical production and storage; The corrosion resistance of the weld is the same as that of the base metal, and it is not easy to leak.

[ Process structure ]

The cylinder is rolled as a whole to reduce the splicing weld and the leakage risk; All-welding adopts double-sided argon protection, without oxide interlayer; The inner and outer walls shall be polished and free of dead corner and corrosive medium; It can be matched with titanium jacket to realize heating and cooling, and the pipe orifice and flange are integrally welded; Hydraulic pressure test and weld flaw detection for finished products one by one, acid pickling and passivation to strengthen the surface corrosion protection, and supporting the installation of titanium stirring, titanium coil and titanium spraying devices.

[ Application field ]

1. Fine chemical industry: acid-base synthesis, organic corrosion material reaction and storage equipment;
2. Plating and surface treatment: anti-corrosion reactor and liquid storage tank for electroplating and etching liquid;
3. Hydrometallurgy: non-ferrous metal extraction and leaching high-salt corrosion solution storage tank;
4. New energy materials: lithium battery corrosion electrolyte, high-purity reagent storage reaction vessel;
5. Environmental acid cleaning workshop: acid cleaning waste liquid, high-chloride waste water corrosion resistant storage tank and reaction equipment.
