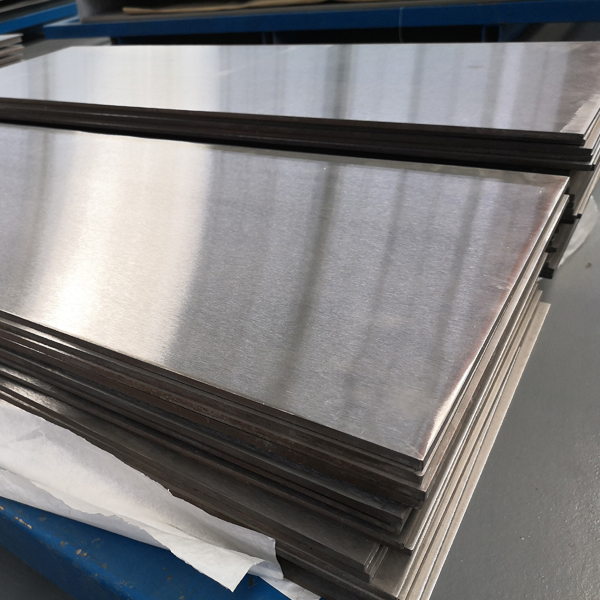

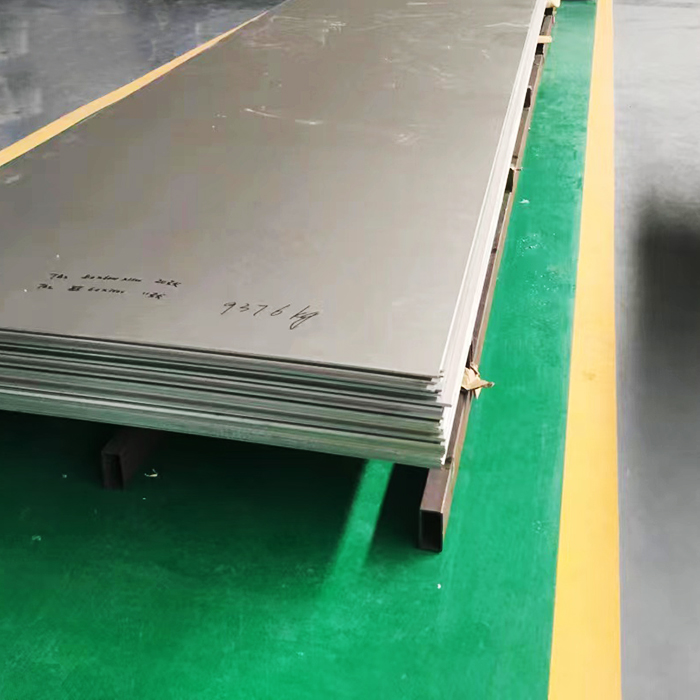

Grade5 titanium plate

[ Supply Status ]
Hot rolled black sheet and cold-rolled bright sheet, with no peeling, interlayer, or cracks on the surface after removing the oxide layer.

[ Processing Technology ]

Hot rolling and cutting of titanium alloy ingots → Cold rolling and finishing → Vacuum stress relief annealing → Plate surface polishing and non-destructive testing → Open cutting and storage.

[ Material Performance ]

TC4 has a much higher tensile strength than TA2 pure titanium, and is resistant to impact and alternating fatigue. Its mechanical properties are stable at high temperatures of 400 ℃; The surface passivation film can resist corrosion from seawater, salt spray, and weak acids, and is not prone to pitting corrosion; Low density, reducing weight by about 40% compared to steel; Non magnetic, will not interfere with nuclear magnetic and vacuum sensing equipment; TC4 ELI has stricter impurity control, good biocompatibility, and can be used to produce load-bearing implant components for the human body.

[ Process Structure ]

Uniform melting and casting of raw materials, precise control of aluminum and vanadium ratios, and uniform composition of sheet materials without segregation; Multi pass rolling refines grain size, with dense internal structure and strong bending and pressure resistance; Vacuum annealing eliminates rolling stress, making bending and machining less prone to deformation and cracking; Spectral testing is conducted for each batch, and ultrasonic testing is performed on thick plates one by one to identify internal defects such as porosity, inclusions, and delamination.

[ Application Fields ]

1. Aerospace: Lightweight partitions, structural supports, and connecting plate blanks for aircraft;
2. Medical devices: orthopedic implant steel plates, high-strength minimally invasive instrument housing accessories;
3. Vacuum semiconductor: non-magnetic high-temperature resistant chamber, vacuum fixture substrate;
4. Marine Heavy Industries: seawater high-pressure equipment shells, corrosion-resistant load-bearing panels;
5. New energy equipment: high-strength fixtures for lithium battery corrosion conditions, equipment protective plates.
